Rear Suspension Description

DESCRIPTION

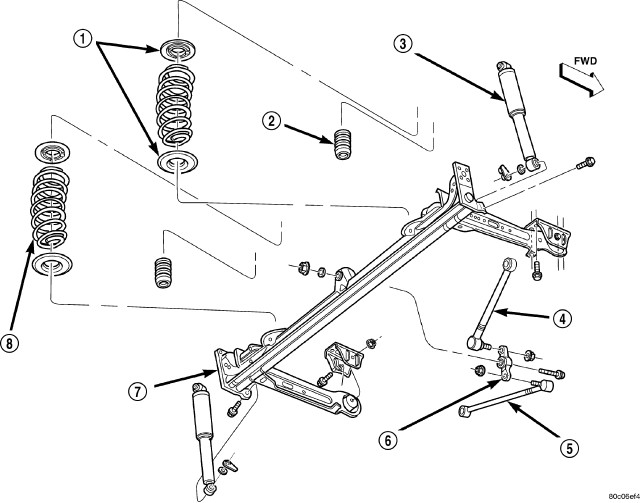

Rear Suspension System





The rear suspension design used on this vehicle is a twist beam trailing axle type with vertically mounted coil springs.

The rear suspension consists of these major components:

- Axle
- Coil spring (2 per vehicle)
- Hub and bearing (2 per vehicle)
- Jounce bumper (2 per vehicle)
- Shock absorber (2 per vehicle)
- Spindle (2 per vehicle)
- Stabilizer bar (Export)
- Watts link assembly

Refer to the individual components for additional information.
