Water and Power Steering Pump Assembly - Description

WATER PUMP/POWER STEERING PUMP ASSEMBLY

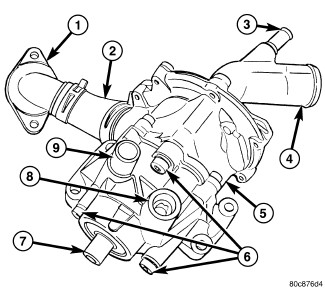

Water Pump/Power Steering Pump Assembly





The water pump on this vehicle is attached to the rear of the power steering pump to form an assembly. The water pump/power steering pump assembly is located on the front corner of the engine.

The water pump is bolted to the rear of the power steering pump. Driven by the power steering pump shaft, the water pump's impeller is located inside a die-cast aluminum housing. The water pump housing has a built in outlet. The water pump also has a bolt-on inlet cover with two ports, one for incoming coolant from the radiator and the other for incoming coolant from the heater.

Both pumps (water and power steering) can be serviced separately. Remove the entire water pump/power steering pump assembly, then disassemble it to service either pump.

For information on the power steering pump, Power Steering Pump - Description.
