Left Rear ABS Wheel Speed Sensor (Underbody) 2 Way
Left Rear ABS Wheel Speed Sensor (Underbody) 2 Way

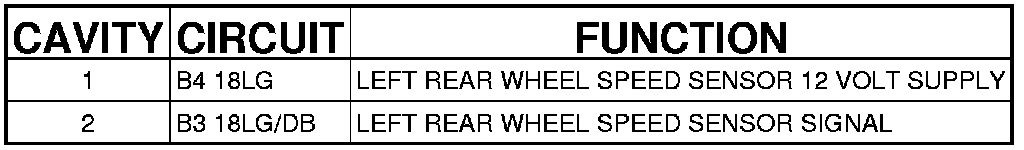

Connector - (UNDERBODY) 2 WAY

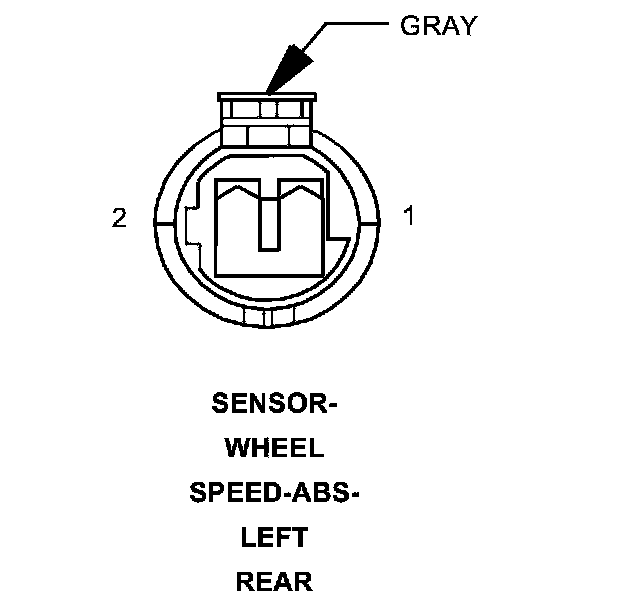

SENSOR-WHEEL SPEED-ABS-LEFT REAR - (UNDERBODY) 2 WAY
