Power Seat Switch - Removal

REMOVAL





1. Disconnect and isolate the battery negative cable.

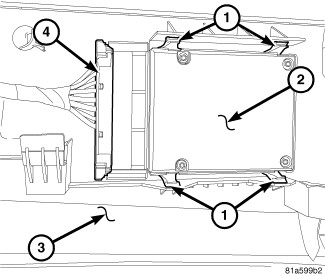

2. Remove the outboard seat cushion side shield (3).
3. Disconnect the power seat switch electrical harness connector (4).
4. Using a small flat bladed tool, gently release the four mounting tabs (1) that secure the power seat switch (2) and separate switch from side shield (3).
