Power Seat Switch: Diagrams

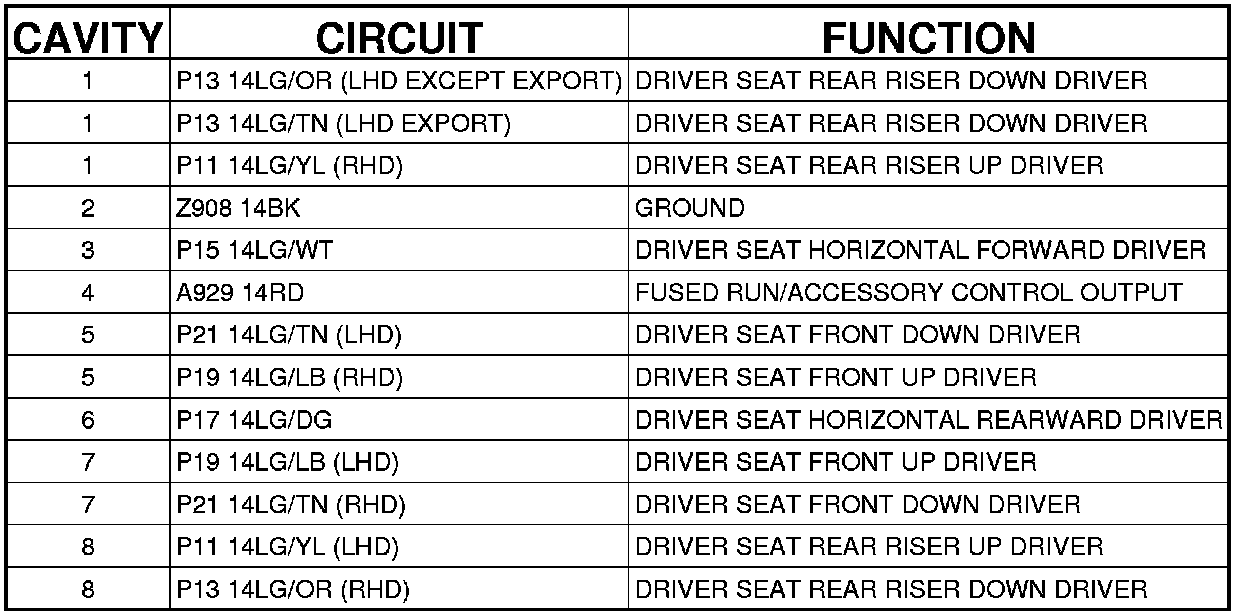

Connector - (FRONT SEAT) 8 WAY




SWITCH-SEAT-DRIVER - (FRONT SEAT) 8 WAY
