Power Mirror Switch - Removal

REMOVAL





1. Disconnect and isolate the battery negative cable.
2. Remove the left lower instrument panel bezel. Pull top rearward, lower to floor and with a quick pulling motion remove off instrument panel.
3. Remove two screws to the left instrument panel end cover.
4. Pull the left end cover rearward to unsnap. Maneuver it out from underneath the left A-pillar trim and top cover. Removal of these components is not necessary.
5. Disconnect the power mirror switch wiring connector and remove end cover from vehicle.

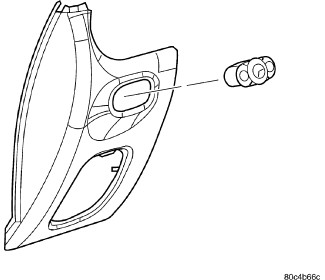

6. With the left end cover on the bench, gently pry in on the tabs of the mirror switch and push through the front of the cover and remove.
