Removal

REMOVAL










1. Release fuel pressure, Service and Repair.
2. Remove the air cleaner lid, disconnect the inlet air temperature sensor and makeup air hose.
3. Remove the negative battery cable.
4. Raise vehicle and support.
5. Drain fuel tank, Procedures.

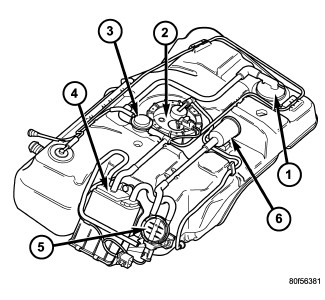

6. Remove fuel tank and EVAP system, Fuel Tank - Removal.










7. Remove the push pin.
8. Remove hoses from EVAP canister.

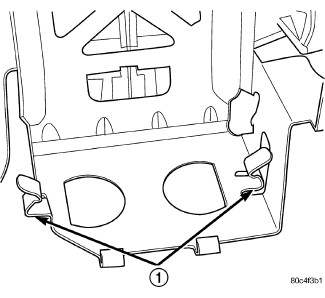

9. Spread spring clips on the side of EVAP canister and tip canister out and away from bracket tabs.
