Installation

INSTALLATION

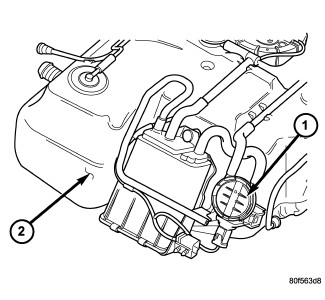

1. Install EVAP canister over bracket tabs.

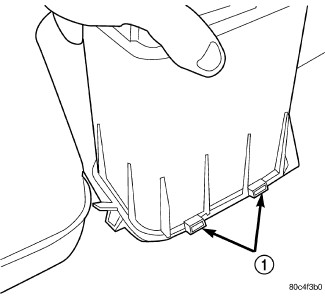

2. Push canister back and into the bracket until the spring clips snap over the edge of the canister.

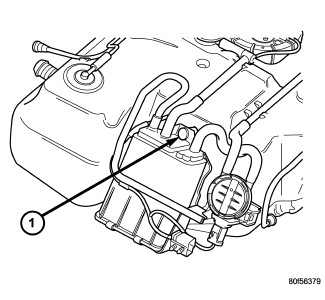

3. Install the push pin through the EVAP canister and the bracket and into the fuel tank.










4. Install hoses and lines.
5. Install the fuel tank and EVAP system,Fuel Tank - Installation.
6. Lower vehicle.
7. Install the negative battery cable.
8. Install the air cleaner lid, connect the inlet air temperature sensor and makeup air hose.
9. Fill fuel tank. Use the scan tool to pressurize the fuel system. Check for leaks.
