Backup Lamp Switch - Installation

INSTALLATION

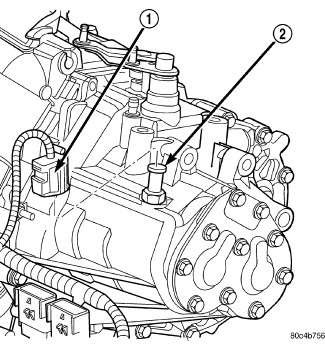

Install back-up lamp switch (2). Teflon tape or equivalent must be used on switch threads. Tighten switch to 24 Nm (18 ft. lbs.) torque.

CAUTION: Do not overtighten switch.

1. Connect back-up lamp switch connector (1).
2. Lower vehicle.
3. Verify back-up lamp operation.
