Rear Crankshaft Oil Seal - Installation

INSTALLATION










CAUTION: If a burr or scratch is present on the crankshaft edge (chamfer), cleanup with 400 grit sand paper to prevent seal damage during installation of new seal.

NOTE: When installing seal, no lube on seal is needed.

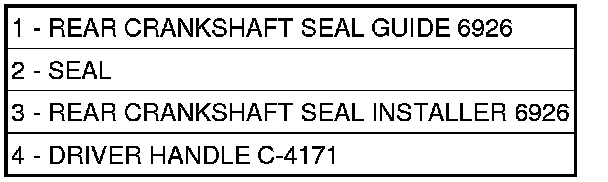

1. Place Rear Crankshaft Seal Guide 6926-1 (1) on crankshaft.
2. Position seal (2) over guide tool. Rear Crankshaft Seal Guide 6926-1 should remain on crankshaft during installation of seal. Ensure that the lip of the seal is facing towards the crankcase during installation.

CAUTION: If the seal is driven into the block past flush, this may cause an oil leak.











3. Drive the seal into the block using Rear Crankshaft Seal Installer 6926-2 and Driver Handle C-4171 until the tool bottoms out against the block.
4. Install flex plate. Apply Mopar(R) Lock & Seal Adhesive to bolt threads and tighten bolts to 95 Nm (70 ft. lbs.).
5. Install transaxle.
