Camshaft Seal(s) - Removal

REMOVAL





1. Remove timing beltTiming Belt & Sprockets - Removal.
2. Hold each camshaft sprocket with Camshaft Sprocket Holder 6847 (1) while removing center bolt.
3. Remove camshaft sprockets.
4. Remove rear timing belt coverEngine Timing Cover(s) - Removal.

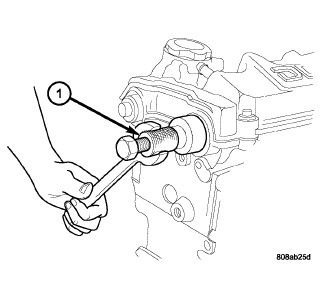

5. Remove camshaft seal using Camshaft Seal Remover C-4679A (1).

CAUTION: Do not nick shaft seal surface or seal bore.
