Accessory Drive Idler Pulley - Installation






INSTALLATION

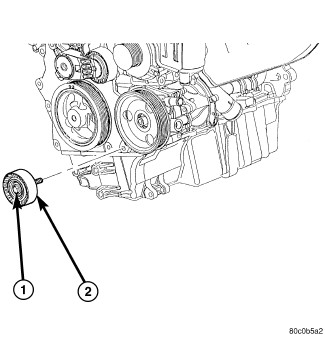

1. Position pulley (2) in mounting position. Install fastener securing idler pulley (1) to front of engine. Torque fastener to 28 Nm (250 in. lbs.).
2. Install accessory drive belt Serpentine Accessory Drive Belt - Installation.
3. Install belt splash shield.
4. Lower vehicle.
5. Connect negative battery cable.
