Engine Mounting - Description

DESCRIPTION

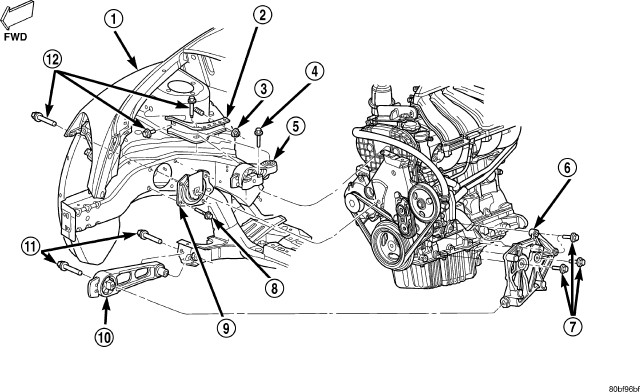

The engine mounting system consists of a four-point system utilizing two load-carrying mounts and two torque struts. The load-carrying mounts are located on each frame rail. The right mount is a hydro-elastic mount (9).










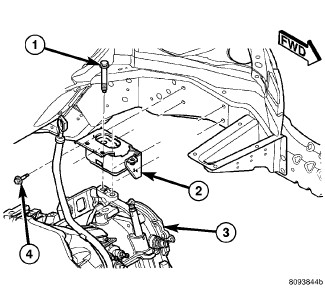

The left mount is a conventional elastomeric isolator (2).










The upper torque strut (5) and the lower torque strut (10) are attached at the front of the engine, straddling the right side load-carrying mount. The upper strut (10) connects to the suspension strut tower and the lower to the suspension crossmember.
