Accessory Drive Belt Tensioner - Installation






2.0L/2.4L ENGINE










NOTE: Tensioner arm should move freely and maintain 33-46 lb. tension on belt.

1. Install tensioner pulley and bolt, if removed. Tighten bolt to 27 Nm (20 ft. lbs.).

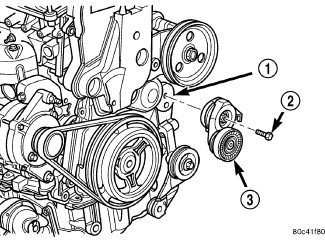

2. Install tensioner assembly (3) to engine and tighten bolt (2) to 54 Nm (40 ft. lbs.).
3. Install power steering/air conditioning compressor belt Serpentine Accessory Drive Belt - Installation.
