Hydraulic Lifters - Removal

REMOVAL

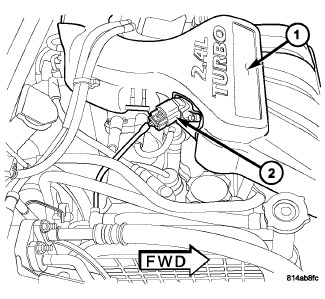

1. Remove intake manifold cover (1).
2. Remove upper intake manifold.

NOTE: This procedure is for in-vehicle service with camshafts installed.

3. Remove cylinder head coverCylinder Head Cover(s) - Removal.






NOTE: If reusing, mark each rocker arm and each hydraulic lash adjuster for reassembly in original position. Lash adjusters are serviced as an assembly.

4. Remove rocker armValve Rocker Arm - Removal.
5. Remove hydraulic lash adjuster.
6. Repeat removal procedure for each hydraulic lash adjuster.
