Measuring Camshaft End Play

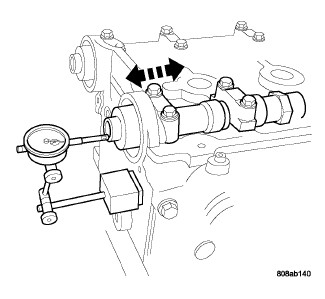

MEASURING CAMSHAFT END PLAY





1. Oil camshaft journals and install camshaft WITHOUT rocker arms. Install rear cam caps and tighten screws to 12 Nm (105 in. lbs.).
2. Using a suitable tool, move camshaft as far rearward as it will go.
3. Zero dial indicator.
4. Move camshaft as far forward as it will go.
5. Record reading on dial indicator. For end play specificationEngine Specifications.
6. If end play is excessive, check cylinder head and camshaft for wear; replace as necessary.
