Camshaft Sprockets - Installation

CAMSHAFT SPROCKET(S)










CAUTION: Do not use an impact wrench to tighten camshaft sprocket bolts. Damage to the camshaft-to-sprocket locating dowel pin may occur.

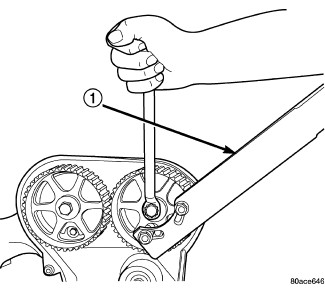

1. Install camshaft sprockets. Hold sprockets with Camshaft Sprocket Holder 6847 (1) while tightening center bolt to 115 Nm (85 ft. lbs.).
2. Install timing beltTiming Belt & Sprockets - Installation.
3. Install upper and lower front timing belt coversEngine Timing Cover(s) - Installation.
