Cooling Fan - Description

GAS ENGINES

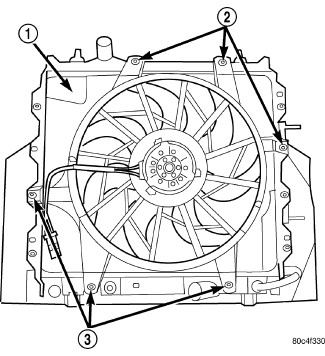

The radiator cooling fan is a dual-speed electric motor driven fan. The radiator fan assembly includes an electric motor, fan blade, and a support shroud (1) that is attached to the radiator. The radiator fan is serviced as an assembly.
