Front

INSTALLATION

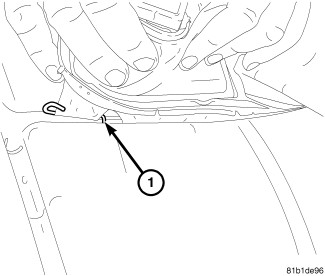

1. Using new hog rings (1), install on cover and seat cushion frame.
2. Slip cover over cushion.
3. Connect the electrical connectors.

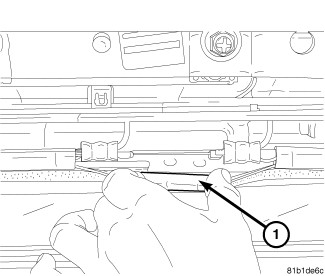

4. Install the rear J-strap.

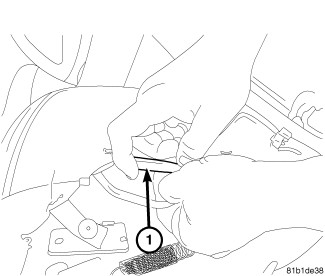

5. Install the side J-strap.

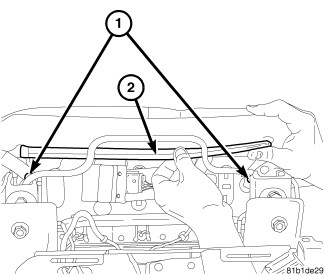

6. Install the front J-strap (2).
7. Install push pins (1).
8. Install the seat back. Front.
9. Install the seat into vehicle Seat - Installation.
