Rear

COUPE

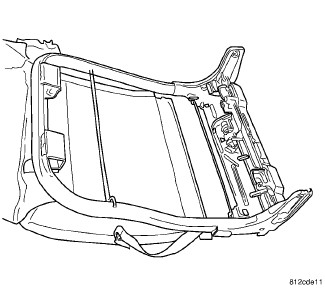

1. Position seat back on cushion.
2. Install inboard pivot bolt. Tighten bolt to 40 Nm (30 ft. lbs.).
3. Install bolts attaching recliner to seat cushion frame. Tighten bolts to 12 Nm (9 ft. lbs.) torque.
4. Install rear seat cushion side shields.

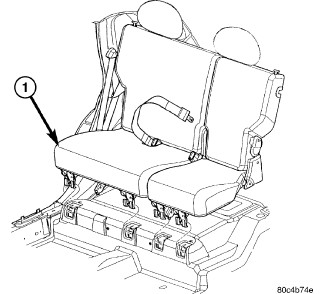

5. Install seat in vehicle.
