Door Sill

COUPE

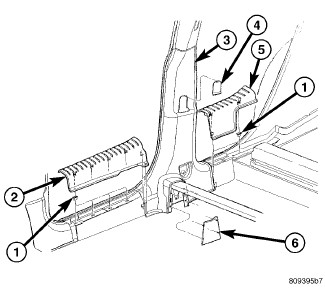

1. Position door sill trim on door sill.
2. Align locating pins on backside of trim panel to holes in door sill.
3. Engage clips on trim panel into slots in door sill.
4. Engage clips on trim panel onto tabs on lower B-pillar (3) and cowl trim.
5. Press downward on trim panel to fully engage all clips.
