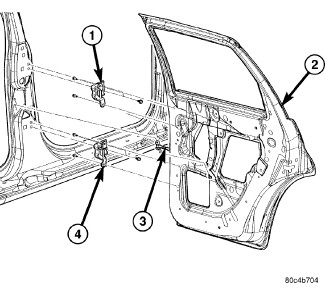

Rear Door - Removal

REMOVAL










1. Open door and support on a suitable lifting device.
2. Disconnect the wire connector at the hinge pillar.
3. Remove bolts attaching door check strap to B-pillar.
4. Mark door hinges for reinstallation.
5. Remove bolts attaching lower hinge to door.
6. Remove bolts attaching upper hinge to door.
