Radio - Description

DESCRIPTION

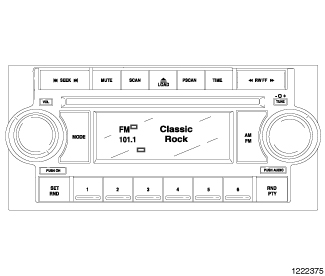

Available radios for this vehicle include:





AM/FM/CD (REF sales code)

- 12 AM/FM station presets
- Hands-free phone capability with UConnect system
- Optional integrated Sirius Radio

AM/FM/6 CD (RAQ sales code)

MW/FM/CD (REG sales code) export only

MW/FM/6 CD (RAR sales code) export only

MW/FM/CD/Navigation (REE sales code) export only

All factory installed radios can communicate on the Controlled Area network (CAN).

COUNTRY CODE AND CABIN EQ SETTING - REG, RAR AND REE RADIO ONLY

The REG, RAR and REE radio may require the country code and cabin EQ setting to be set if not programmed correctly.

If battery power is lost to radio, the anti-theft code must be entered before the radio operates.

If the region the vehicle will be driven in uses 10 kHz spacing on the AM band (i.e. 950, 960 etc.), set the Country Code to "USA". If the region uses 9 kHz spacing, has LW and MW Bands, and uses RDS (i.e. AF, PTY, TA, etc.), set the radio for "EUR". If neither of the previous settings apply and the vehicle is not being driven in Japan, set the radio to "ROW". Vehicles driven in Japan should have the radio set to "JPN". The following chart list are selected country codes and radio broadcast standards.

To enter the country code and EQ setting, use a scan tool.

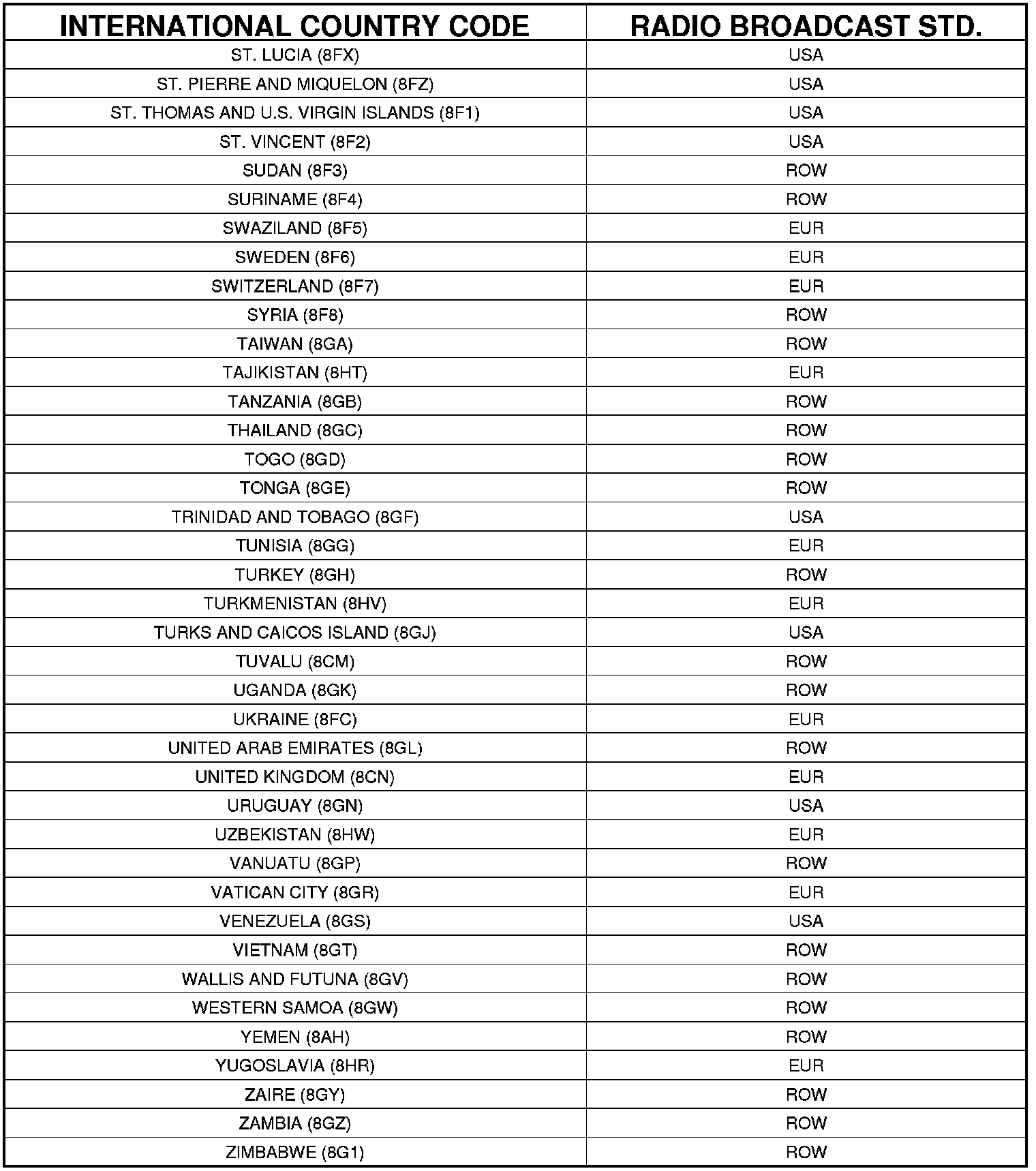

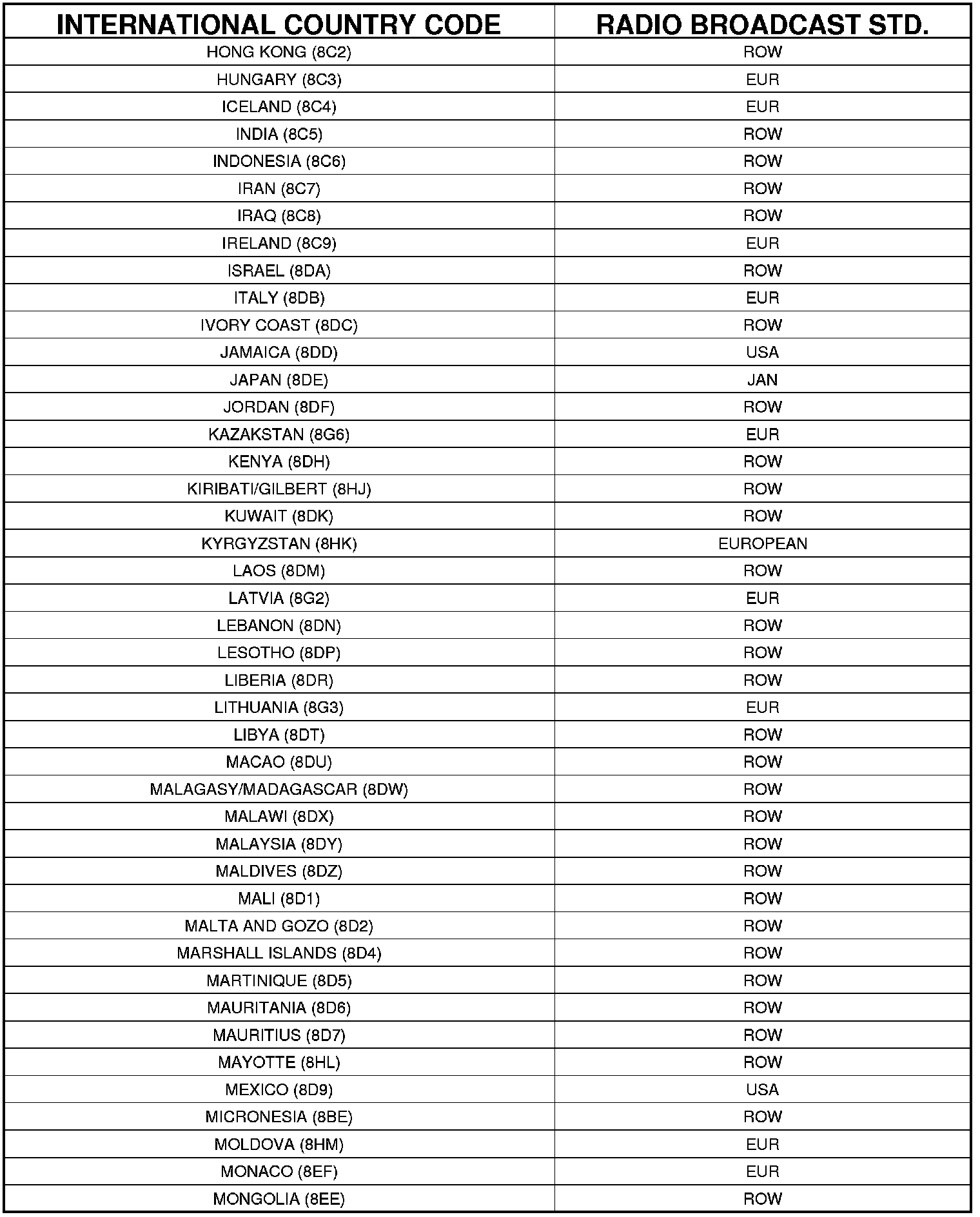

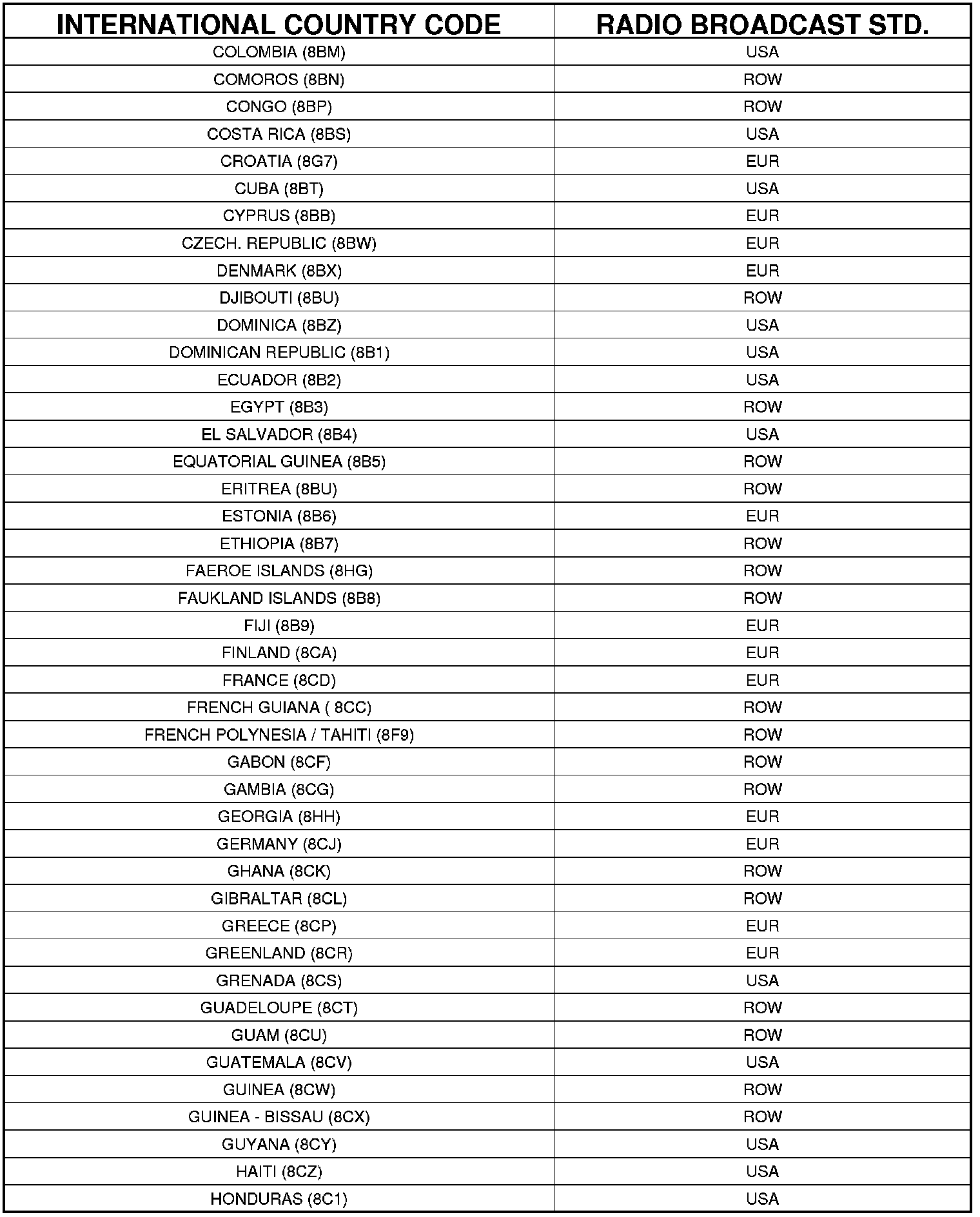

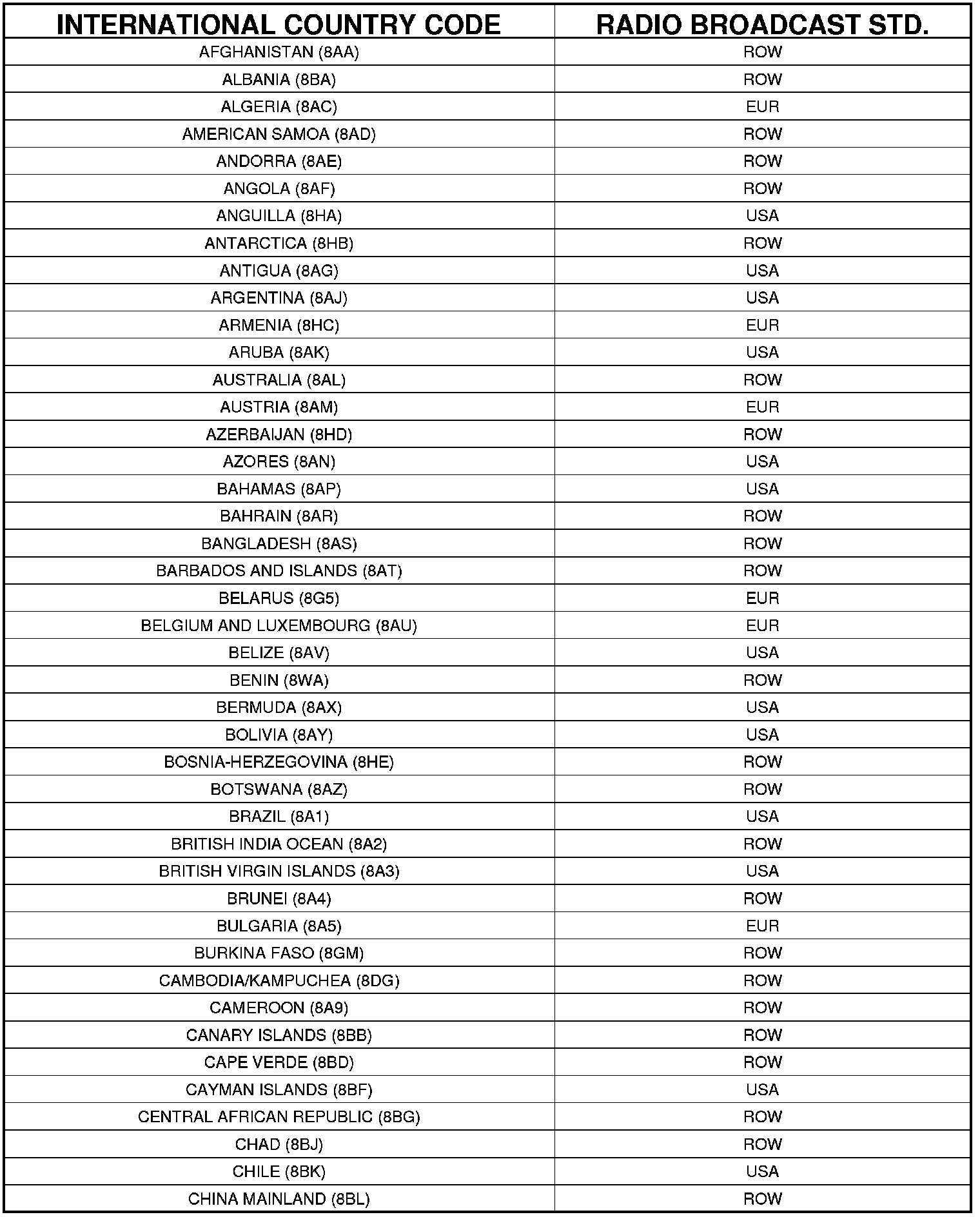

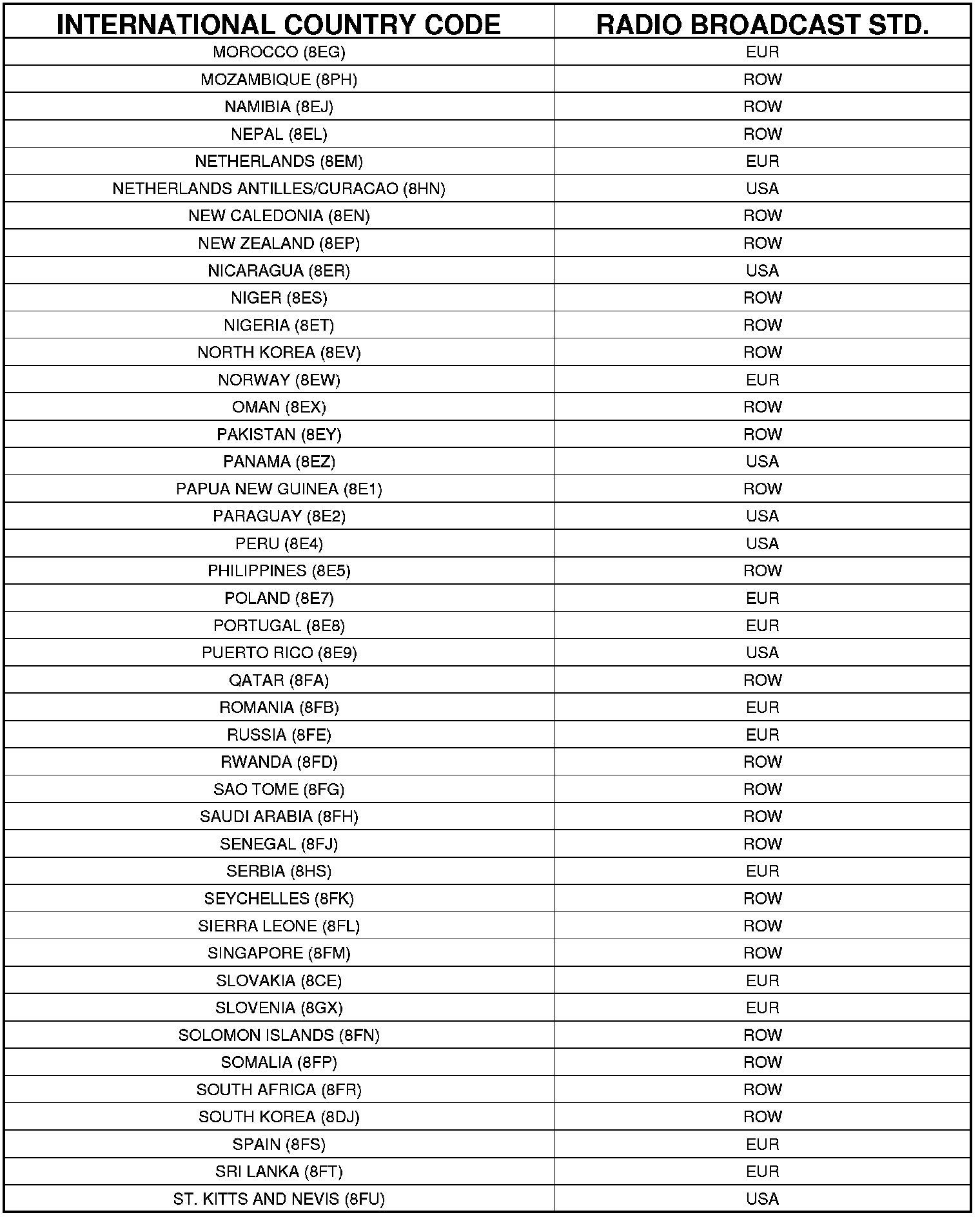

COUNTRY CODE SELECTION CHART
