LENS, Instrument Cluster: Installation: Installation

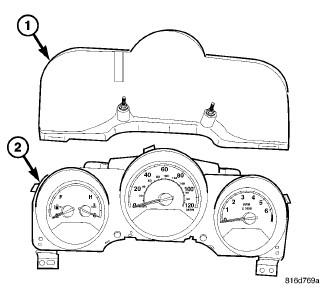

Fig 1: Remove/Install Mask Lens
GC0114350Courtesy of CHRYSLER LLC
  1. To install new mask/lens (1), just place in position on cluster housing (2) and firmly snap together.
  2. Install instrument cluster. See Electrical/Instrument Cluster - Installation .
