Weatherstrip, DECKLID, Convertible: Removal: Removal

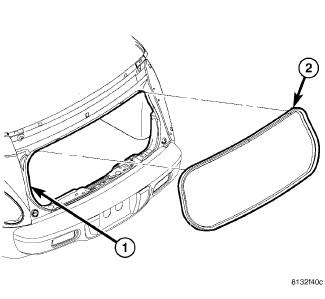

Fig 1: DECKLID OPENING WEATHERSTRIP
GC0116302Courtesy of CHRYSLER LLC
  1. Open the decklid.
  2. Remove the decklid opening weatherstrip (2) from the decklid opening flange (1) by carefully puling outward on the weatherstrip.
