Retainer, Weatherstrip, A-Pillar: Removal: Removal

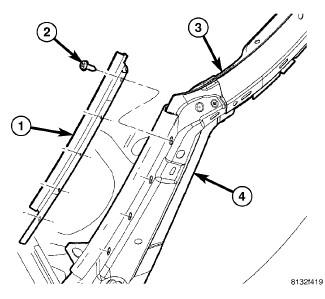

Fig 1: A-PILLAR WEATHERSTRIP

Courtesy of CHRYSLER LLC

1. Remove the header and A-pillar weatherstrip (3) as necessary to gain access to the A-pillar weatherstrip retainer (1). See Body/Weatherstrip/Seals/WEATHERSTRIP, Header - Removal .
2. Remove the four screws (2) that secure the A-pillar weatherstrip retainer to the A-pillar (4) and remove the retainer.
