Panel, Silencer: Removal: Removal

NOTE: LHD model shown in illustration. RHD model similar.

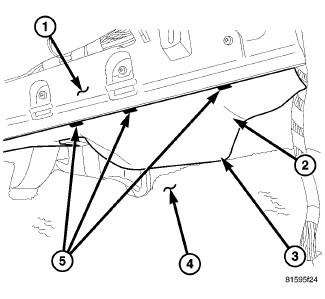

Fig 1: Silencer-IP
GC0116138Courtesy of CHRYSLER LLC
  1. Remove the three push-pin retainers (5) that secure the instrument panel silencer (2) to the bottom of the instrument panel (1).
  2. Disengage the silencer retaining tab (3) from behind the top of the floor carpet (4) at the dash panel and remove the silencer.
