Retainer, Weatherstrip, Header: Removal: Removal

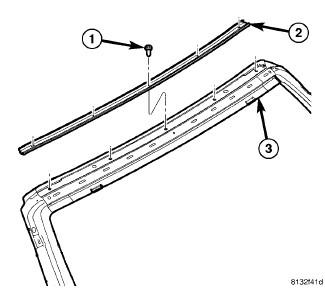

Fig 1: WEATHERSTRIP HEADER SEAL RETAINER

Courtesy of CHRYSLER LLC

1. Remove the header and A-pillar weatherstrip. See Body/Weatherstrip/Seals/WEATHERSTRIP, Header - Removal .
2. Remove the five screws (1) that secure the weatherstrip header seal retainer (2) to the windshield opening frame (3) and remove the seal retainer.
