Cover, Instrument Panel: Removal: Removal

WARNING: Disable the airbag system before attempting any steering wheel, steering column, or instrument panel component diagnosis or service. Disconnect and isolate the negative battery (ground) cable, then wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to follow these instructions may result in accidental airbag deployment and possible serious or fatal injury.

NOTE: LHD model shown in illustration. RHD model similar.

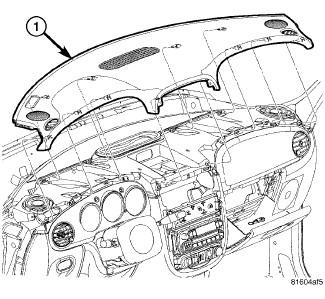

Fig 1: I/P COVER

Courtesy of CHRYSLER LLC

Disconnect and isolate the negative battery cable.
Remove the left and right A-pillar trim. See Body/Interior/PANEL, A-Pillar Trim - Removal .
Using a trim stick C-4755 or equivalent, disengage the snap retainers that secure the instrument panel top cover (1) to the top of the instrument panel (2).
Remove the instrument panel top cover by gently pulling rearward on the cover to disengage the retainers from the front of the instrument panel.
