Wiring, Convertible Top: Removal: Removal
Courtesy of CHRYSLER LLC
- Position the convertible top in the raised position.
- Remove the rear seat cushion. See Body/Seats/COVER, Seat Cushion - Removal .
- Remove the left interior quarter trim panel. See Body/Interior/PANEL, Quarter Trim - Removal .
- Remove the rear seat back. See Body/Seats/SEAT BACK - Removal .
- Remove the push-pins (1) that secure the convertible top well (2) to the rear seat back panel (3) and body (4) and remove the well liner.
Courtesy of CHRYSLER LLC
- Remove the protective cover (3) from the top of the hydraulic pump/motor assembly (4) located on the shelf panel (2).
Courtesy of CHRYSLER LLC

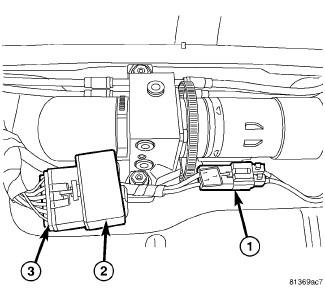

- Disconnect the wire connector for the pump motor (1).
- Remove the three retaining clips that secure the convertible top wire harness (3) and relay (2) to the body.
Courtesy of CHRYSLER LLC

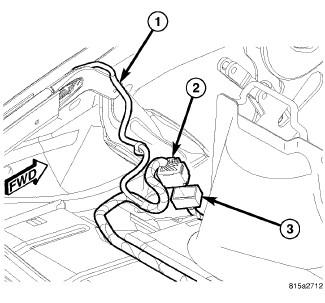

- Disconnect the two wire harness connectors from the rear window defogger terminals and route the defogger wire harness lead (1) through the wire slings.
- Disconnect the convertible top wire harness connector (2) from the body wire harness (3) located on the left side of the vehicle and remove the convertible top wire harness.
