3.0L Diesel

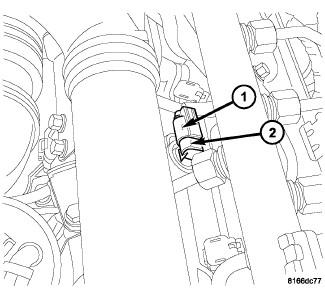

Fig 1: Removing/Installing ECT Sensor - 3.0L Diesel
GC0079903Courtesy of CHRYSLER LLC
  1. Disconnect negative battery cable.
  2. Remove engine cover.
  3. Partially drain coolant system. See Cooling - Standard Procedure .
  4. Unplug coolant temperature sensor electrical connector (1).
  5. Remove coolant temperature sensor (2).
