SENSOR, Coolant Temperature: Installation: 5.7L/6.1L

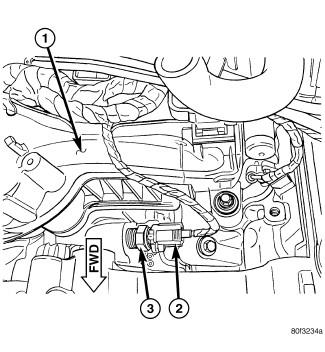

Fig 1: Removing/Installing ECT Sensor - 5.7L/6.1L

Courtesy of CHRYSLER LLC

1. Apply thread sealant to sensor threads.
2. Install ECT sensor (3) to engine.
3. Tighten sensor to 11 N.m (98 in. lbs.).
4. Connect electrical connector (2) to ECT sensor (3).
5. Fill the cooling system. See Cooling - Standard Procedure .
