SENSOR, Coolant Temperature: Installation: 3.5L

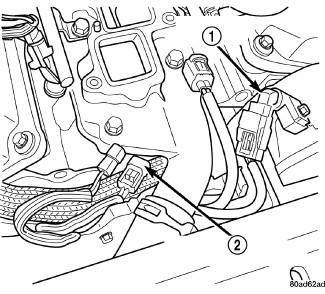

Fig 1: Engine Coolant Temperature Sensor - 3.5L
GC0095213Courtesy of CHRYSLER LLC
1 - CAMSHAFT POSITION SENSOR
2 - ENGINE COOLANT TEMPERATURE SENSOR
  1. Install engine coolant temperature sensor (2). Tighten sensor to 28 N.m (20 ft. lbs.).
  2. Attach electrical connector to sensor.
  3. Connect negative battery cable.
