3.0L Diesel

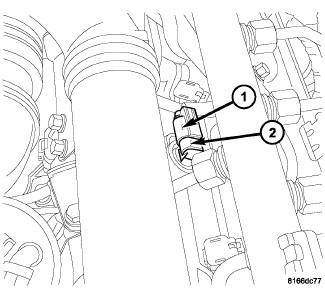

Fig 1: Removing/Installing ECT Sensor - 3.0L Diesel
GC0081532Courtesy of CHRYSLER LLC
  1. Position and install coolant temperature sensor (2).
  2. Connect coolant temperature sensor electrical connector (1).
  3. Refill coolant system to proper level. See Cooling - Standard Procedure .
  4. Install engine cover.
  5. Connect negative battery cable.
  6. Start engine and inspect for leaks. See Cooling - Diagnosis and Testing .
