3.0L Diesel
WARNING:
Risk of injury to skin and eyes from scalding with hot coolant. Risk of poisoning from swallowing coolant. Do not open cooling system unless coolant temperature is below 90°C (194°F). Open cap slowly to release pressure. Store coolant in suitable and appropriately marked container. Wear protective gloves, clothes and eye wear.
- Disconnect the negative battery cable.
- Remove the engine cover.
- Drain the engine coolant. See Cooling - Standard Procedure .
- Disconnect and remove the upper radiator coolant hose.
- Remove the accessory drive belt. See Cooling/Accessory Drive/BELT, Serpentine - Removal .
- Remove the EGR valve. Refer to REMOVAL .

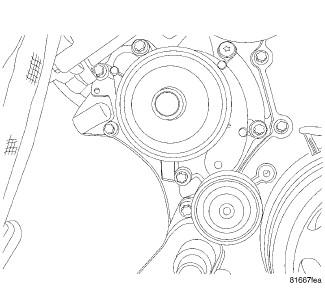

- Remove the water pump and clean the sealing surfaces.
