3.5L Engine

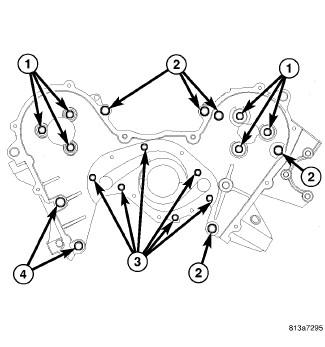

Fig 1: Water Pump Fasteners - 3.5L Engine

Courtesy of CHRYSLER LLC

1 - M8 FASTENERS (APPLY THREAD SEALANT)

2 - M10 FASTENERS

3 - M6 FASTENERS

4 - M10 FASTENERS (STUD/NUT)

Clean all O-ring surfaces on front cover.
Position water pump and O-ring to engine.
Install mounting bolts (3). Tighten to 12 N.m (105 in. lbs.).
Install timing belt. Refer to Engine/Valve Timing/BELT and SPROCKETS, Timing - Installation .
Install accessory drive belts. See Cooling/Accessory Drive/BELT, Serpentine - Installation .
Evacuate air and fill cooling system. For evacuating air, see Cooling/Engine/PUMP, Water - Standard Procedure . For filling cooling system, see Standard Procedure .
Check cooling system for leaks. See Cooling - Diagnosis and Testing .
