3.0L Diesel

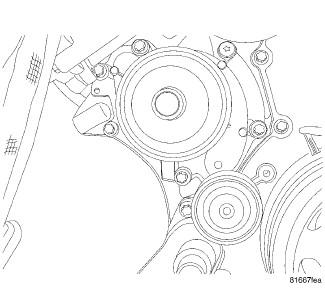

Fig 1: Water Pump - 3.0L Diesel
GC0081533Courtesy of CHRYSLER LLC
  1. Clean all sealing surfaces.
  2. Position and install the water pump. Tighten M6 bolts to 14 N.m (124 lbs. in.) and M8 bolts to 20 N.m (177 lbs. in.).
  3. Install the EGR valve. Refer to INSTALLATION .
  4. Install the accessory drive belt. See Cooling/Accessory Drive/BELT, Serpentine - Installation .
  5. Install the upper radiator hose.
  6. Install engine cover.
  7. Connect the negative battery cable.
  8. Evacuate air and fill cooling system. For evacuating air, see Cooling/Engine/PUMP, Water - Standard Procedure . For filling cooling system, see Standard Procedure .
  9. Check the cooling system for leaks, repair as necessary. See Cooling - Diagnosis and Testing .
