TENSIONER, Belt: Removal: 5.7L/6.1L

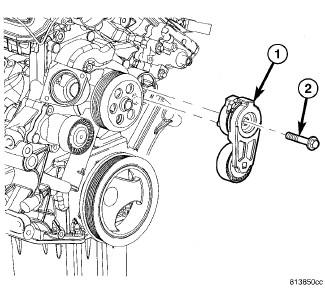

Fig 1: Tensioner - 5.7L/6.1L Engine
GC0095199Courtesy of CHRYSLER LLC
1 - TENSIONER
2 - BOLT
  1. Remove accessory drive belt. See Cooling/Accessory Drive/BELT, Serpentine - Removal .
    WARNING: Because of high spring pressure, do not attempt to disassemble automatic tensioner. Unit is serviced as an assembly.
  2. Remove tensioner assembly bolt (2).
  3. Remove tensioner assembly (1) from mounting bracket.
