TENSIONER, Belt: Removal: 3.5L

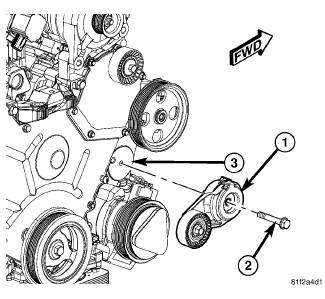

Fig 1: Tensioner - 3.5L Engine
GC0095198Courtesy of CHRYSLER LLC
1 - ACCESSORY DRIVE BELT TENSIONER
2 - BOLT
3 - FRONT ENGINE COVER
WARNING: Because of high spring pressure, do not attempt to disassemble automatic tensioner. Unit is serviced as an assembly.
  1. Remove accessory drive belt. See Cooling/Accessory Drive/BELT, Serpentine - Removal .
  2. Remove tensioner assembly bolt (2).
  3. Remove accessory drive belt tensioner (1) from front engine cover (3).
