TENSIONER, Belt: Installation: 5.7L/6.1L

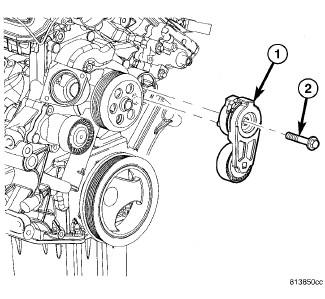

Fig 1: Tensioner - 5.7L/6.1L Engine
GC0095201Courtesy of CHRYSLER LLC
1 - TENSIONER
2 - BOLT
  1. Install tensioner bolt (2) to tensioner (1). Tighten bolt to 34 N.m (40 ft. lbs.).
  2. Install accessory drive belt. See Cooling/Accessory Drive/BELT, Serpentine - Installation .
  3. Check belt indexing marks.
