TENSIONER, Belt: Description: Description

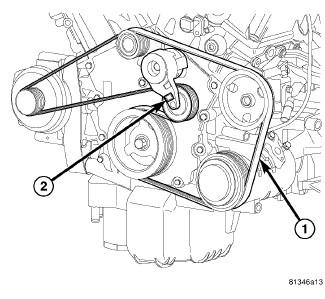

Fig 1: Automatic Belt Tensioner
GC0079899Courtesy of CHRYSLER LLC

Correct drive belt tension is required to ensure optimum performance of the belt (1) driven engine accessories. If specified tension is not maintained, belt slippage may cause; engine overheating, lack of power steering assist, loss of air conditioning capacity, reduced generator output rate, and greatly reduced belt life.
