PULLEY, Idler: Removal: 5.7L/6.1L

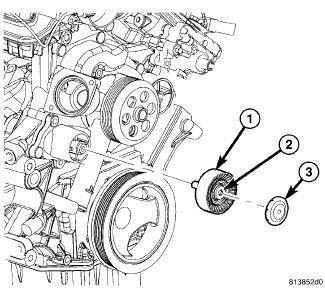

Fig 1: Idler Pulley - 5.7L/6.1L Engine
GC0095195Courtesy of CHRYSLER LLC
1 - IDLER PULLEY
2 - BOLT (part of pulley)
3 - COVER
  1. Remove accessory drive belt. See Cooling/Accessory Drive/BELT, Serpentine - Removal .
  2. Remove cover (3).
  3. Remove bolt (2) and idler pulley (1).
