Home >> Chrysler >> 2009 >> 300 Signature Series >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Engine & Automatic Transmission Cooling System >> Accessory Drive >> PULLEY, Idler >> Removal >> 3.0L Diesel

3.0L Diesel

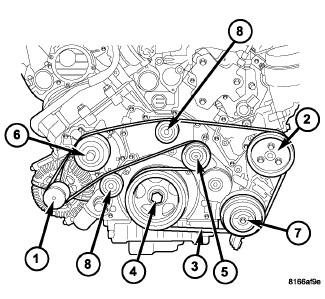

Fig 1: Identifying Drive Belt - 3.0L Diesel
GC0081530Courtesy of CHRYSLER LLC
  1. Remove accessory drive belt (3). See Cooling/Accessory Drive/BELT, Serpentine - Removal .
  2. Remove cover.
  3. Remove bolt and idler pulley (8).
