3.0L Diesel

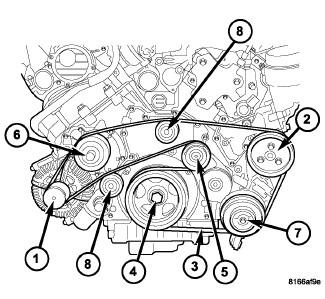

Fig 1: Identifying Drive Belt - 3.0L Diesel
GC0081531Courtesy of CHRYSLER LLC
  1. Position idler pulley (8).
  2. Install idler pulley mounting bolt. Tighten to 28 N.m (250 in. lbs.).
  3. Install cover.
  4. Install accessory drive belt (3). See Cooling/Accessory Drive/BELT, Serpentine - Installation .
