PULLEY, Idler: Installation: 2.7L

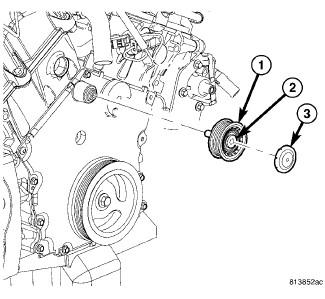

Fig 1: Idler Pulley - 2.7L Engine

Courtesy of CHRYSLER LLC

1 - IDLER PULLEY

2 - BOLT (part of pulley)

3 - COVER

Position idler pulley (1).
Tighten bolt (2) to 28 N.m (250 in. lbs.).
Install cover (3).
Install accessory drive belt. See Cooling/Accessory Drive/BELT, Serpentine - Installation .
