Diagnostic Test

INTERMITTENT CONDITION
1. Turn the ignition on.
2. With the Scan Tool, clear all CCN DTCs.
3. Turn the Headlamps on.
4. With the Scan Tool, read the DTC information.
  Does the Scan Tool read: B1608-HEADLAMP SWITCH INPUT CIRCUIT HIGH?

  Yes
  - Go to step 2
  No
  - The condition that caused the symptom is currently not present. Inspect the related wiring for a possible intermittent condition. Look for any chafed, pierced, pinched, or partially broken wires.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
HEADLAMP SWITCH
1. Disconnect the Headlamp Switch connector.
2. Turn the ignition on.
3. Measure the voltage between the (L900) Headlamp MUX Return circuit and (L307) Headlamp Input MUX circuit.
  Does the voltage read 0.0 volts?

  Yes
  - Replace the Headlamp Switch in accordance with the Service Information.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
  No
  - Go to step 3
(L900) MUX RETURN CIRCUIT

Fig 1: Measuring Resistance Of MUX Return Circuit
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the Headlamp Switch connector.
3. Disconnect the Instrument Cluster C2 connector.
4. Measure the resistance of the (L900) Headlamp MUX Return circuit.
  Is the resistance below 5.0 ohms?

  Yes
  - Go to step 4
  No
  - Repair the (L900) Headlamp MUX Return circuit.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
INSTRUMENT CLUSTER

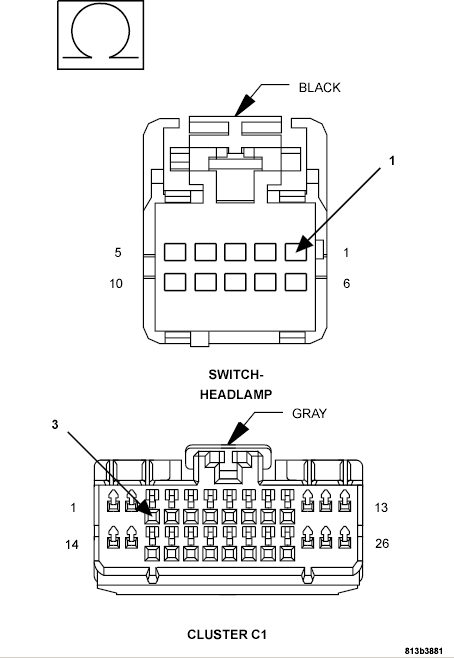

Fig 2: Measuring Resistance Of Headlamp MUX Circuit
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the Headlamp Switch connector.
3. Disconnect the Instrument Cluster C1 connector.
4. Measure the resistance of the (L307) Headlamp MUX circuit.
  Is the resistance below 5.0 ohms?

  Yes
  - Replace the instrument Cluster in accordance with the Service Information.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
  No
  - Repair the (L307) Headlamp MUX circuit.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
