A/C Compressor

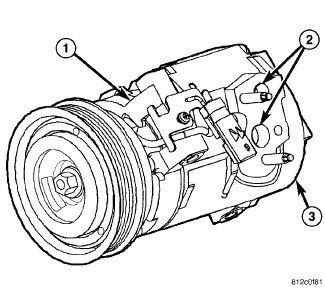

Fig 1: A/C Compressor -Typical

Courtesy of CHRYSLER LLC

NOTE: Typical A/C compressor shown in Fig 1.

The A/C system on models equipped with the 2.7L, 3.0L and 3.5L engine use a Denso 10S17 A/C Compressor (1). Models equipped with the 5.7L and 6.1L engine use a Denso 10SRE18 A/C Compressor. Both A/C compressors are ten cylinder, double-acting, swash plate type compressors, with the suction and discharge ports (2) located on the cylinder head (3).

A label identifying the use of R-134a refrigerant is located on each A/C compressor.
