Air Outlet Barrels - Dodge

NOTE: The instrument panel air outlet barrels are retained to the pivots within the air outlets by a snap fit.

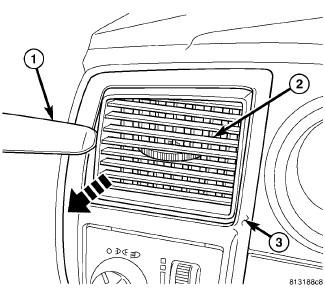

Fig 1: Outlet-Air-Barrel Remove

Courtesy of CHRYSLER LLC

NOTE: LHD model shown in illustrations. RHD model similar.

Using Trim Stick C-4755 (1) or equivalent, gently pry the air outlet barrel(s) (2) out of the instrument panel air outlet(s) (3) as required.
