Air Outlet - Dodge

NOTE: Only the outboard passenger side instrument panel air outlet can be serviced separately. For service of the other instrument panel air outlets. Refer to Body/Instrument Panel/BEZEL, Instrument Cluster - Removal

NOTE: LHD model shown in illustrations. RHD model similar.

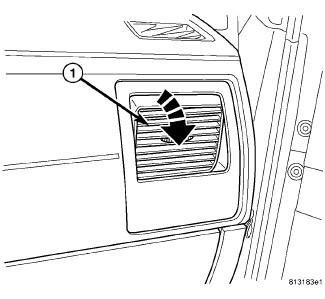

Fig 1: Outlet-Air Remove 1

Courtesy of CHRYSLER LLC

Rotate the top of the outboard passenger side air outlet barrel (1) downwards.

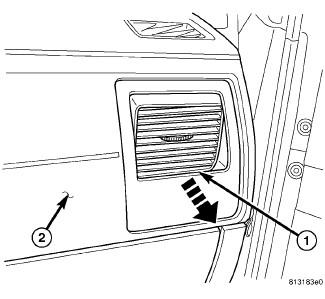

Fig 2: Outlet-Air Remove 2
Courtesy of CHRYSLER LLC
Gently pull out on the bottom edge of the air outlet (1) to release the snap clip retainers that secure the outlet to the instrument panel (2).
Remove the air outlet from the instrument panel.
