Air Outlet Barrels - Dodge

NOTE: LHD model shown in illustration. RHD model similar.

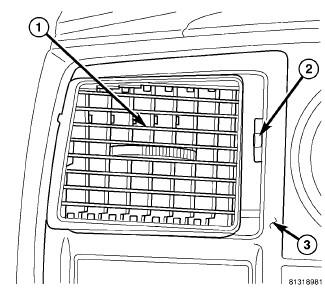

Fig 1: Outlet-Air-Barrel Install (1 Of 2)
GC0096068Courtesy of CHRYSLER LLC
  1. Install the air outlet barrel (1) onto the pivot shaft (2) on the right side of the instrument panel air outlet (3).

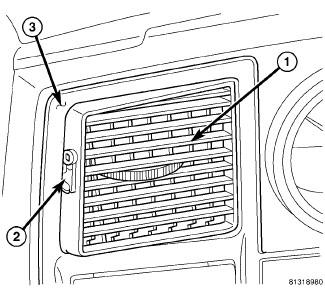

    Fig 2: Outlet-Air-Barrel Install (2 Of 2)
    GC0081059Courtesy of CHRYSLER LLC
  2. Gently push the air outlet barrel (1) onto the pivot shaft (2) on the left side of the instrument panel air outlet (3).
